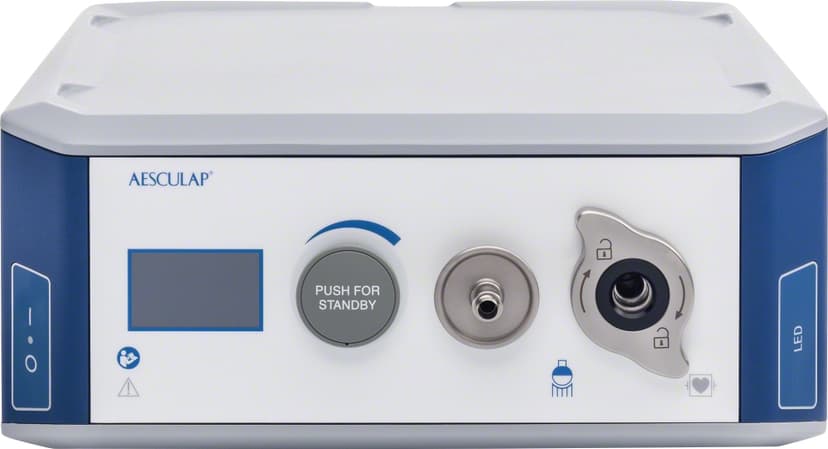

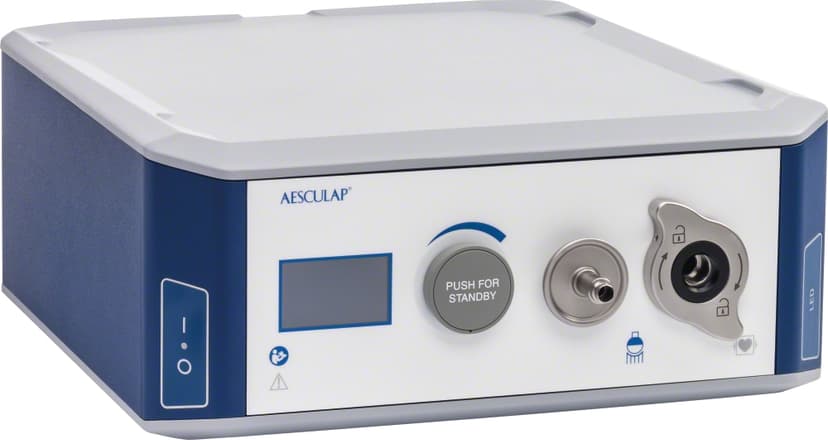

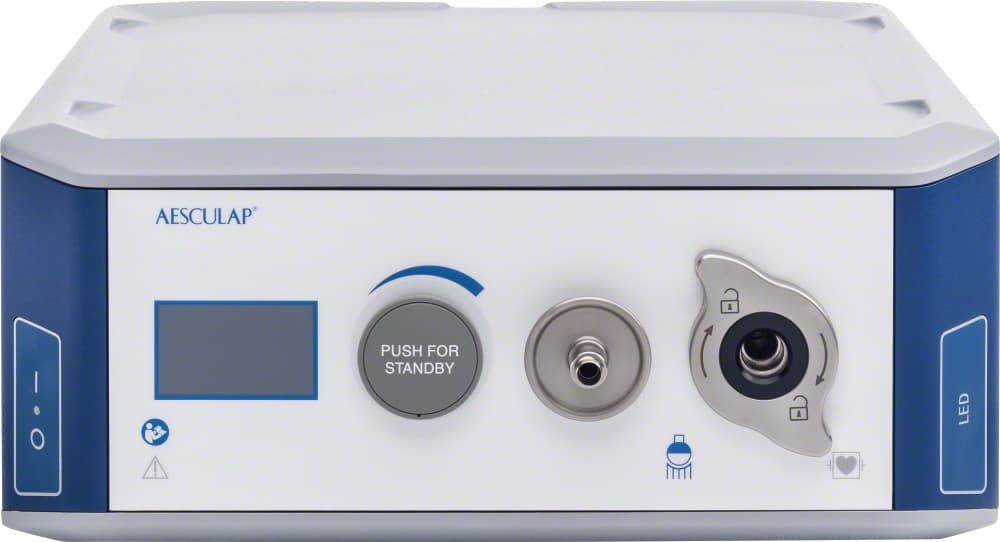

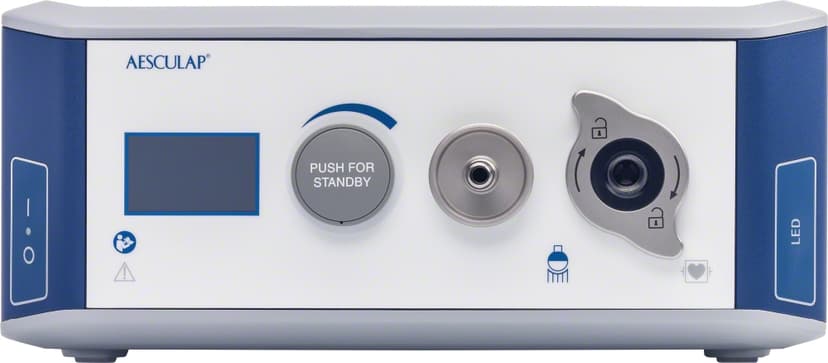

LED LIGHT SOURCE | B. Braun
- Ürün tipi
- Light Source
- Aesculap ürün grupları
- endoskopik teknoloji
- ürün ailesi
- ekipman
- Tip
- LED
- En (mm)
- 330.000 mm
- yükseklik
- 146.000 mm
- derinlik (mm)
- 362.000 mm
- sistem
- LED
- entegre yedek lambası
- hayir
- lambanın yeğinlik artışı
- devamli
- güç kaynağı
- 100-240 V AC, 50/60Hz
- maksimum elektrik tüketimi
- 625.0 VA
- Ağırlık
- 8.50 kg
- ile kullanılabilir
- OP906, OP913, OP914, OP923
- disiplin
- genel cerrahi, artroskopi, uroloji
- sterilizasyon tipi (güncel)
- not to be sterilized
- EN_60601-1'ye göre koruma sev.
- CF
- EN_60601-1'ye göre emni. kate.
- I
- normlara göre test edilen
- EN 60601-1, EN 60601-1-2
- ejectör ile / ejectörsuz
- No
- sterilik
- steril olmayan
- Son kullanma tarihi
- tekrar kullanilabilen
